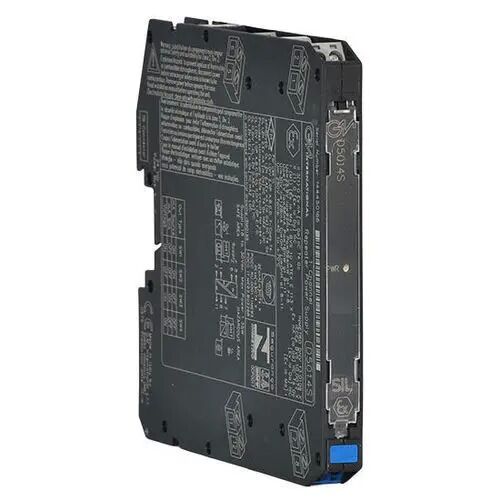

D5014S I . S . SIL3 2 / 4 - Wire HART ® Transmitter Power Supply
| Brand Name: | GMI |
| Model Number: | D5014S |
| MOQ: | 1 piece |
| Price: | $257-267 |
| Delivery Time: | 1 - 3 days |
| Payment Terms: | T/T |
The Repeater Power Supply D5014 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The module supports output current duplication and it allows bi-directional communication signals, for HART® devices.
|
Supply
|
|
| Voltage | 24 Vdc nom (18 to 30 Vdc), reverse polarity protected |
| Current Consumption | 45 mA @ 24 Vdc with 20 mA out, typical. |
| Power Dissipation | 0.68 W @ 24 Vdc with 20 mA out, typical. |
|
Input
|
|
| Type | 4 to 20 mA (separately powered input, voltage drop ≤ 0.5 V) or 4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA. |
| Transmitter line voltage | 15.0 V typical, 14.5 V minimum, @ 20 mA. |
|
Output
|
|
| Type | 4 to 20 mA, on max. 550 Ω load in source mode (typical 12 V compliance); V min. 8 V @ 0 Ω load V max. 30 V in sink mode, current limited ≈ 25 mA or 1 to 5 V on internal 250 Ω shunt. Output current duplication available (D5014D). |
| Response time | 5 ms (0 to 100 % step change). |
|
Performance
|
|
| Ref. Conditions | 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature. |
| Calibration accuracy | ≤ ± 0.1 % FSR. |
| Linearity accuracy | ≤ ± 0.05 % FSR. |
| Temp. influence | ≤ ± 0.01 % FSR on zero/span for a 1 °C change. |
|
Isolation
|
|
| Test Voltage | I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V. |
|
Environmental conditions
|
|
| Operating temperature | temperature limits –40 to +70 °C. |
| Storage temperature | temperature limits –45 to +80 °C. |
|
Safety description
|
|
| Equipment | Associated apparatus and non-sparking electrical equipment. |
| Safety parameters | Uo = 25.9 V, Io = 92 mA, Po = 594 mW at terminals 7-8, 9-10. Uo = 1.1 V, Io = 56 mA, Po = 16 mW at terminals 8-11, 10-12. Ui = 30 V, Ii = 128 mA, Ci = 0 nF, Li = 0 nH at terminals 8-11, 10-12. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. |
|
Mounting
|
|
| Type | DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. |
| Weight | about 130 g |
| Connection | by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions | Width 12.5 mm, Depth 123 mm, Height 120 mm. |
