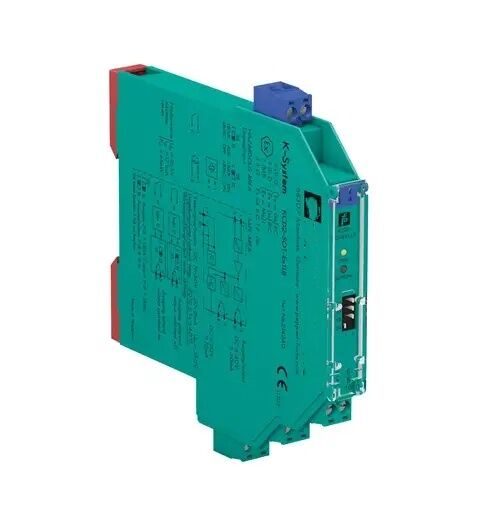

Switch Amplifier KCD2-SOT-EX1.LB
Switch Amplifier
KCD2-SOT-EX1.LB
* 1-channel isolated barrier
* 24 V DC supply (Power Rail)
* Dry contact or NAMUR input
* 2 passive transistor outputs
* Usable as signal splitter (1 input and 2 outputs)
* Reversible mode of operation
* Line fault detection (LFD)
* Housing width 12.5 mm
* Up to SIL 2 (SC 3) acc. to IEC/EN 61508




Specification
General specifications
Signal type Digital Input
Functional safety related parameters
Safety Integrity Level (SIL)  SIL 2
Systematic capability (SC) SC 3
Supply
Connection
Power Rail or terminals 9+, 10-
Rated voltage Ur 19 ... 30 V DC
Ripple
≤ 10 %
Rated current Ir 20 ... 15 mA + Iout
Power dissipation
≤ 700 mW including maximum power dissipation in the output
Input
Connection side
field side
Connection
terminals 1+, 2-
Rated values
acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current
approx. 10 V DC / approx. 8 mA
Switching point/switching hysteresis
1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection
breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA
Pulse/Pause ratio
min. 100 µs / min. 100 µs
Output
Connection side
control side
Connection
output I: terminals 5, 6 ; output II: terminals 7,8
Rated voltage Ur 30 V DC
Rated current Ir 50 mA
Response time
≤ 200 µs
Signal level
1-signal: (external voltage) - 3 V max. for 50 mA
0-signal: blocked output (off-state current ≤ 10 µA)
Output I
signal ; Transistor
Output II
signal or fault message ; Transistor
Collective error message
Power Rail
Transfer characteristics
Switching frequency ≤ 5 kHz
