The softstarter PSE60-600-70 has a rated maximum operational current of 60 A with an operating voltage span from 208...600 V AC.
The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stopthrough a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in N (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general purpose softstarter. It’s a perfect balance between high starting capacity and cost efficiency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors,andconveyors.
products details
|

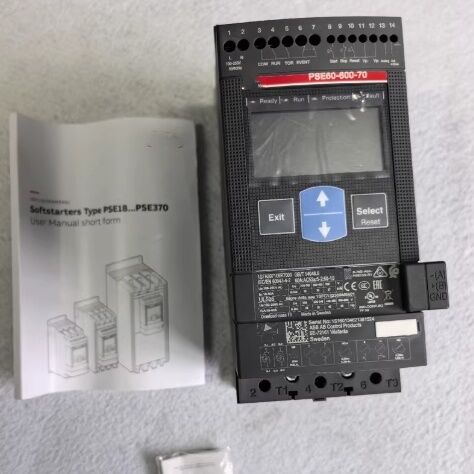

AB-B Soft Starter PSE60-600-70 - 60 a - 208 ... 600 V AC
| Brand Name: | AB-B |
| Model Number: | PSE60-600-70 |
| MOQ: | 1 piece |
| Price: | $462-472 / piece |
Detail Information
Place of Origin:
Switzerland
Application:
Electrical Equipment
Condition:
100%new 100%Original
Product Name:
Soft Starter
Warranty:
12 Months
Terminal Type:
Screw Terminals
Rated Frequency (f):
50/60 Hz
Net Weight:
2.5KG
Product Main Type:
PSR3
Payment Term:
T/T
Shipping Term:
DHL FEDEX EMS UPS
Service:
One-stop Service
Product Description
Product Description
PSE60-600-70
Specification
Article Number (Market Facing Number) | PSE60-600-70 |
Connecting Capacity Main Circuit: | Connecting Capacity Main Circuit: Hole Diameter 8.5 mm Rigid 1/2 x 2.5 ... 70 mm² Width and Thickness 17.5x5 mm |
Rated Operational Voltage: | 208 ... 600 V AC |
Rated Control Supply Voltage (Us): | 100 ... 250 V AC |
Rated Control Circuit Voltage (Uc): | 24 V DC |
Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
Product Main Type | PSE60 |
Function: | Soft start with torque control Soft start with voltage ramp Soft stop with torque control Soft stop with voltage ramp Kick start Sequence start Current limit Start reverse (external contactors) Automatic restart Event log |
Communication: | Modbus-RTU |
Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
Ramp Time: | 0 ... 30 second [unit of time] 1 ... 30 second [unit of time] |
Overload Protection: | Build-in electronic overload protection |
Product Net Width: | 90 mm |
Product Net Height: | 245 mm |
Product Net Depth / Length: | 184mm |
Product Net Weight: | 2.5kg |
Packaging Quantity | 1 |
Package size unit of measure | MM |
Quantity Unit | 1 Piece |
