Endress+Hauser
Created with Pixso. CLS15 - B1M2A Analog Conductivity Sensor Condumax CLS15
Detail Information
Place of Origin:
Switzerland
Warranty:
3 Years
Product Name:
Analog Conductivity Sensor
Measuring Principle:
Conductive
Application:
Water, Power Plant, Process
Characteristic:
2-electrode Conductivity Cell For Pure And Ultrapure Water
Temperature Sensor:
Pt100
Material:
Electrode: 1.4435 Electrode Shaft: PES
Process Temperature:
Max. 130°C (150°C / 30 Min.) (max. 266°F (302°F/30 Min.)
Process Pressure:
Max. 12 Bar At 20°C (174 Psi At 68°F)
Payment Method:
100%T/T
Product Description

Product Description

CLS15 - B1M2A Analog Conductivity Sensor Condumax CLS15
Analog conductivity sensor
Condumax CLS15
Conductive conductivity sensor for standard applications in pure and ultrapure water
CLS15 - B1M2A Analog Conductivity Sensor Condumax CLS15

Field of application

Condumax CLS15 is the ideal choice for conductivity measurement in low measuring ranges. It performs reliably and accurately in a wide range of applications - even in hazardous areas. Designed for low maintenance and a long operating life, the sensor offers real value for money.

Condumax CLS15 measures conductivity in pure and ultrapure water applications for the monitoring and control of:

  • Ion exchangers
  • Reverse osmosis
  • Cooling water
  • Distillation
  • Chip cleaning

The sensor can be used in power plants for:

  • Degassed conductivity
  • pH measurement with differential conductivity

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

  • Reliable and accurate measuring values at low conductivities
  • Easy to clean thanks to polished measuring surfaces
  • Sterilizable
  • Robust design for high durability
  • Different cell constants provide a wide measuring range
  • Quality certificate stating the individual cell constant

Specification



  • Application

    Water, power plant, process

  • Characteristic

    2-electrode conductivity cell for pure and ultrapure water

  • Measuring range

    k=0,01: 0-20 µS/cm
    k=0,1: 0-200 µS/cm

  • Measuring principle

    Conductive conductivity cell with polished stainless steel electrodes

  • Design

    2-electrode conductivity sensor with coaxially arranged electrodes, electropolished

  • Material

    Electrode: 1.4435
    Electrode shaft: PES

  • Dimension

    Electrode diameter: 16 mm
    (0.62 inch)
    Electrode length: appr. 55 mm
    (2.14 inch)

  • Process temperature

    max. 130°C (150°C / 30 min.)
    (max. 266°F (302°F/30 min.)

  • Process pressure

    max. 12 bar at 20°C
    (174 psi at 68°F)

  • Temperature sensor

    Pt100

  • Ex certification

    ATEX

  • Connection

    Process connection: 1/2" NPT, 3/4" NPT, 1 1/2" Clamp
    cable : 4-pole SXP connector or fixed cable

  • Ingress protection

    IP67

  • Certificates, declarations and approvals

    Calibration certification of the cell constante.

More Products

Product Code Product Name
CPM223-MR0005 COS41-2F
CPM253-MR0005 CYK10-A151
CLM223-CD0005 CPS11E-AA7BAA2
CUS51D-AAD1A3 CM442-AAM1A2F010A + AK
CUS71D-AA1A FTL31-AA4U2AAW5J
CAS40D-AA1D1A2 FTL41-AAA4AAAAA1AJI1W5J

Company Profile


Wuhan Jicheng Intelligent Technology Co., Ltd is a professional supplier specializing in the export of electrical and industrial automation products and technical support. We have over ten years of rich experience in the field of industrial automation. Our company focuses on representing , ABB, Schneider, Endress+Hauser, Pepperl+Fuchs, etc. We mainly engaged in PLC, frequency converter, servo motor, HMI,sensor, circuit breaker, relay, soft starter,. etc. Moreover, we have a sufficient spot inventory to meet your procurement needs,especially in the supply of scarce spare parts, where we have a unique advantage.

We will wholeheartedly provide you with satisfactory after-sales service and always strive to enable you to get high-quality products at favorable prices. We sincerely welcome global merchants to visit and look forward to establishing a long-term mutually beneficial partnership with you.


 Packing & Delivery

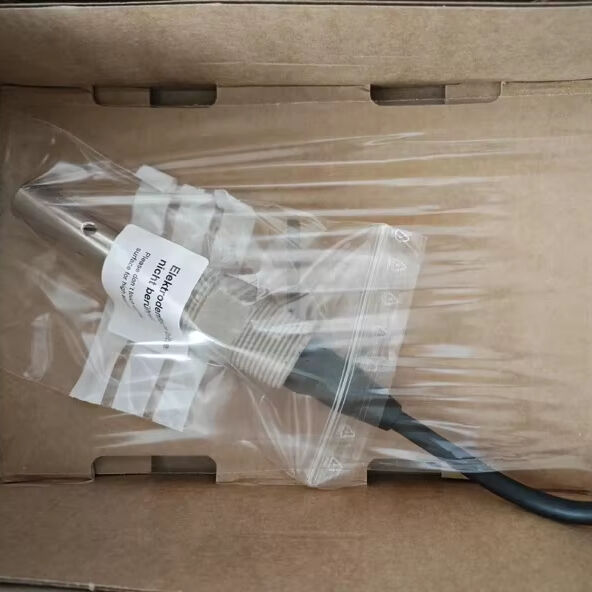

 CLS15 - B1M2A Analog Conductivity Sensor Condumax CLS15
