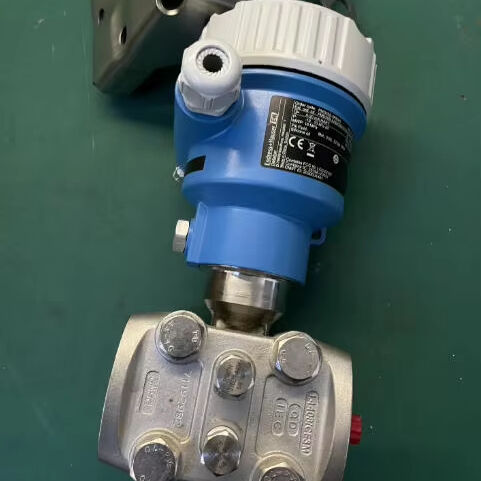

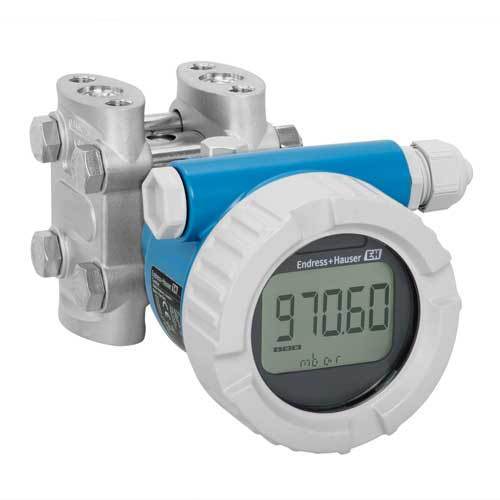

PMD55B - BFBACJH37HCASAJA1D + VD PMD55B - UDT7 / 0 - Pressure Transmitter
| Brand Name: | E+H |
| Model Number: | PMD55B-BFBACJH37HCASAJA1D+VD |
| MOQ: | 1 piece |
| Price: | $488-493 / piece |
| Delivery Time: | 3 - 5 days |
| Payment Terms: | T/T |
Smart transmitter with metal membrane for differential pressure monitoring in liquids and gases
This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly. The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.
- Pressure measuring range: up to 40 bar (600 psi)
- Static pressure up to 250bar (3750psi)
- Accuracy: up to +/-0.055%
- Wireless control of the device in the process area with the SmartBlue App without interrupting the process
- Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
- Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
Overview
* Process temperature:-40°C...+110°C (-40°F...+230°F)
* Pressure measuring range: 30 mbar.... 40 bar (0.45 psi... 600 psi)
* Main wetted parts:316L, AlloyC
* Material process membrane:316L, AlloyC
* Measuring cell:30 mbar...40 bar (0.45 psi...600 psi)
Benefits
* Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
* Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
Application
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.
* Pressure measuring range: up to 40 bar (600 psi)
* Static pressure up to 250bar (3750psi)
* Accuracy: up to +/-0.055%
Specification
|
Measuring principle
|
Differential pressure
|
|
Characteristic
|
Transmitter with metal membrane for differential pressure monitoring in liquids or gases.
Intuitive and clear wizard for commissioning |
|
Supply voltage
|
Ex d, Ex e, non-Ex:
10.5...35V DC Ex i: 10.5...30V DC |
|
Reference Accuracy
|
Standard:
up to 0.075 % Platinum: up to 0.055 % |
|
Long term stability
|
0.05 % of URL/ year
0.13 % of URL/ 5 years 0.23 % of URL/ 10 years |
|
Process temperature
|
-40°C...+110°C
(-40°F...+230°F) |
|
Ambient temperature
|
-40°C...+85°C
(-40°F...+185°F) |
|
Measuring cell
|
30 mbar...40 bar
(0.45 psi...600 psi) |
|
Smallest calibratable span
|
0.3 mbar (0.0045 psi)
|
|
Vacuum resistance
|
25 mbar (0.0375 psi)
|
|
Max. Turn down
|
100:1
|
|
Max. overpressure limit
|
250 bar (3750 psi)
|
|
Process connection
|
NPT1/4-18,
RC1/4" |
|
Material process membrane
|
316L, AlloyC
|
|
Material gasket
|
PTFE, FKM, EPDM, FFKM
|
|
Fill fluid
|
Silicone oil,
Inert oil |
|
Material housing
|
Aluminium
|
|
Communication
|
4...20 mA HART
PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
|
Certificates / Approvals
|
ATEX, IEC Ex, CSA C/US, NEPSI
|
|
Safety approvals
|
SIL
|
|
Design approvals
|
EN10204-3.1,
NACE MR0175, NACE MR0103 |
|
Drinking water approvals
|
NSF, KTW
|
|
Specialities
|
Bluetooth® Operation and maintenance SmartBlue App,
RFID TAG for easy identification, Plug and play functionalities |
