SIE-MENS

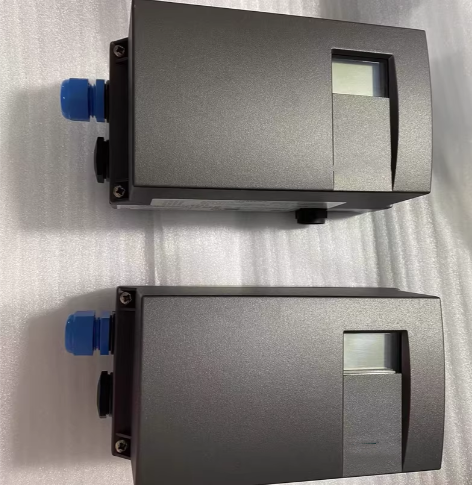

Created with Pixso. SIPART PS2 Electropneumatic Positioner 6DR5010-0EG00-0AA0
Detail Information
Place of Origin:
China
Rated Current:
20 MA
Rated Voltage:
6.6V
Product Name:
Electropneumatic Positioner
Application:
Electrical Appliances
Product Series:
SIPART PS2
Net Weight (kg):
0.9 Kg
Packaging Dimension:
26.1 X 16.7 X 14.6 Cm
Warranty:
One Year
Condition:
100% Original Brand
Shipping:
UPS DHL Fedex EMS
Service:
One-stop Service
Payment:
100%T/T
Product Description
Product Description
SIPART PS2 Electropneumatic Positioner 6DR5010-0EG00-0AA0

6DR5010-0EG00-0AA0

SIPART PS2 Smart, electropneumatic positioner, 4...20mA, Ex/nEx, single-acting, polycarbonate enclosure, for pneumatic linear and part-turn actuators. Non-contacting (wear-free) position detection (NCS). . Type of protection (Ex): Intrinsic safety (Ex i).
Output isolator SITRANS I200 separately orderable (7NG4131-1AA00). Connection thread el.: M20x1.5 / pneu.: G 1/4 Without limit
monitor. Without option module. . Brief instructions English / German / Chinese. Standard / Fail-Safe - Depressurizing the
actuator in case of failure of electrical auxiliary power (single acting only). Without Manometer block / Booster.
SIPART PS2 Electropneumatic Positioner 6DR5010-0EG00-0AA0
SIPART PS2 Electropneumatic Positioner 6DR5010-0EG00-0AA0
SIPART PS2 Electropneumatic Positioner 6DR5010-0EG00-0AA0
SIPART PS2 Electropneumatic Positioner 6DR5010-0EG00-0AA0
SIPART PS2 Electropneumatic Positioner 6DR5010-0EG00-0AA0
SIPART PS2 Electropneumatic Positioner 6DR5010-0EG00-0AA0
Benefits
SIPART PS2 positioners excel in their:
* Easy installation
* Automatic commissioning
* Simple operation and on-device configuration with local display or via SIMATIC PDM
* Very high control performance
* Minimal air consumption in stationary operation
* "Close tight" function for maximum torque on the process valve seat
* "Fast Open/Fast Close" function for defined approach of the end position and fast reaction from the end positions
* "Fail Safe" function: Secure depressurization SIL 2 in case of failure of electrical auxiliary power
* "Fail in Place" function: Maintain current position on failure of electrical and/or pneumatic auxiliary power
* "Fail to Open" function: Pressurizing of the actuator in case of failure of electrical auxiliary power
* Numerous functions can be activated by simple configuring (e.g. characteristic curves and limits)
* One device variant for all applications: Linear actuators, part-turn actuators and cylinders
* Optional with internal or external contactless position feedback for external ambient conditions
* "Intelligent solenoid valve": Solenoid valve function and diagnostics in one device
* Extensive diagnostic functions: * Full Stroke Test
* Multi Step Response Test
* Valve Performance Test
* Valve Signature, pressure sensor-aided
* Partial Stroke Test, optionally pressure sensor-supported for performance and maintenance
assessment of the valve
* Leakage monitoring
* Can be operated with natural gas, carbon dioxide, nitrogen or noble gases
Custom designs for SIPART PS2
Custom and special functionalities are available after consultation.
Specification
Article Number (Market Facing Number)
6DR5010-0EG00-0AA0
Product Description
SIPART PS2 Smart, electropneumatic positioner, 4...20mA, Ex/nEx, single-acting, polycarbonate enclosure, for pneumatic linear and
part-turn actuators. Non-contacting (wear-free) position detection (NCS). . Type of protection (Ex): Intrinsic safety (Ex i).
Output isolator SITRANS I200 separately orderable (7NG4131-1AA00). Connection thread el.: M20x1.5 / pneu.: G 1/4 Without limit
monitor. Without option module. . Brief instructions English / German / Chinese. Standard / Fail-Safe - Depressurizing the
actuator in case of failure of electrical auxiliary power (single acting only). Without Manometer block / Booster.
Product family
SIPART PS2
Product Lifecycle (PLM)
Active Product
Export Control Regulations
ECCN : N / AL : N
Ship time (Working Days)
1 Day/Days
Net Weight (kg)
0.9 Kg
Packaging Dimension
26.1 x 16.7 x 14.6
Packaging Quantity
1
Package size unit of measure
CM
Quantity Unit
1 Piece
