KFD2 - ST3 - EX1 . LB Switch Amplifier | 1 - Channel Isolated Barrier SIL2 New Original
|
KFD2 - ST3 - EX1 . LB Switch Amplifier | 1 - Channel Isolated Barrier SIL2 New Original
| Brand Name: | P+F |
| Model Number: | KFD2-ST3-EX1.LB |
| MOQ: | 1 piece |
| Price: | $80-85 / piece |
| Delivery Time: | 1-3Week days |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
Germany
Application:
Electronic Equipment
Material:
Plastic
Product Name:
Switch Amplifier
Dimensions:
2 X 11.9 X 11.5 CM
Switching Frequency:
≤ 5 KHz
Condition:
100%new 100%Original
Warranty:
12 Months
Payment:
T\T
Shipping Term:
DHL FEDEX UPS
Service:
One-stop Service
Product Description
Product Description
Switch Amplifier

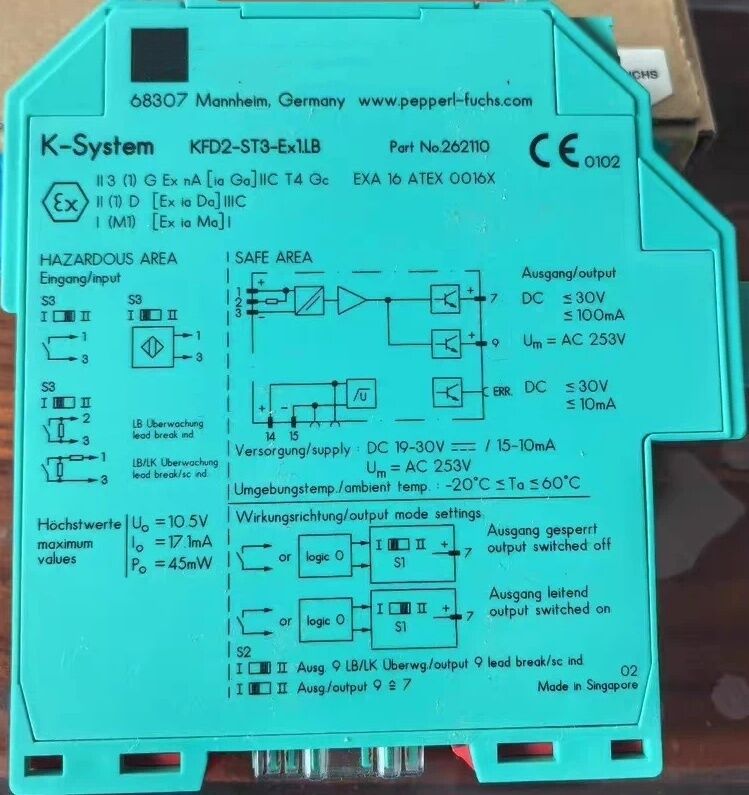

KFD2-ST3-EX1.LB
* 1-channel isolated barrier
* 24 V DC supply (Power Rail)
* Dry contact or NAMUR inputs
* 2 active transistor outputs
* Usable as signal splitter (1 input and 2 outputs)
* Reversible mode of operation
* Line fault detection (LFD)
* Up to SIL 2 (SC 3) acc. to IEC/EN 61508
* 24 V DC supply (Power Rail)
* Dry contact or NAMUR inputs
* 2 active transistor outputs
* Usable as signal splitter (1 input and 2 outputs)
* Reversible mode of operation
* Line fault detection (LFD)
* Up to SIL 2 (SC 3) acc. to IEC/EN 61508
Specification
|
General specifications
|
|
|
||
|
Signal type
|
Digital Input
|
Digital Input
|
||
|
Functional safety related parameters
|
|
|
||
|
Safety Integrity Level (SIL)
|
SIL 2
|
SIL 2
|
||
|
Systematic capability (SC)
|
SC 3
|
SC 3
|
||
|
Supply
|
|
|
||
|
Connection
|
|
Power Rail or terminals 14+, 15-
|
||
|
Rated voltage
|
Ur
|
19 ... 30 V DC
|
||
|
Ripple
|
|
≤ 10 %
|
||
|
Rated current
|
Ir
|
15 ... 10 mA + Iou
|
||
|
Power dissipation
|
|
≤ 800 mW including maximum power dissipation in the output
|
||
|
Input
|
|
|
||
|
Connection side
|
|
field side
|
||
|
Connection
|
|
terminals 1+, 2+, 3-
|
||
|
Rated values
|
|
acc. to EN 60947-5-6 (NAMUR), see manual for electrical data
|
||
|
Open circuit voltage/short-circuit current
|
|
approx. 10 V DC / approx. 8 mA
|
||
|
Switching point/switching hysteresis
|
|
1.2 ... 2.1 mA / approx. 0.2 mA
|
||
|
Line fault detection
|
|
breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA
|
||
|
Pulse/Pause ratio
|
|
min. 100 µs / min. 100 µs
|
||
|
Output
|
|
|
||
|
Connection side
|
|
control side
|
||
|
Connection
|
|
output I: terminal 7+ ; output II: terminal 9+
|
||
|
Rated voltage
|
Ur
|
30 V DC
|
||
|
Rated current
|
Ir
|
100 mA
|
||
|
Response time
|
|
≤ 200 µs
|
||
|
Signal level
|
|
1-signal: (supply voltage) - 3 V max. for 100 mA
0-signal: blocked output (off-state current ≤ 10 µA) |
||
|
Output I
|
|
signal ; Transistor
|
||
|
Output II
|
|
signal or fault message ; Transistor
|
||
|
Collective error message
|
|
Power Rail
|
||
|
Transfer characteristics
|
|
|
||
|
Switching frequency
|
≤ 5 kHz
|
|
||
