Pepperl+Fuchs
Created with Pixso. P+F KFD2-UT2-EX1 Universal Temperature Converter 100% New and Original
Detail Information
Place of Origin:
Germany, Germany
Application:
Electronic Equipment
Material:
Plastic
Product Name:
Universal Temperature Converter
Dimensions:
2 X 11.9 X 11.5 CM
Switching Frequency:
≤ 5 KHz
Condition:
100%new 100%Original
Warranty:
12 Months
Payment:
T\T
Shipping Term:
DHL FEDEX UPS
Service:
One-stop Service
Product Description
Product Description

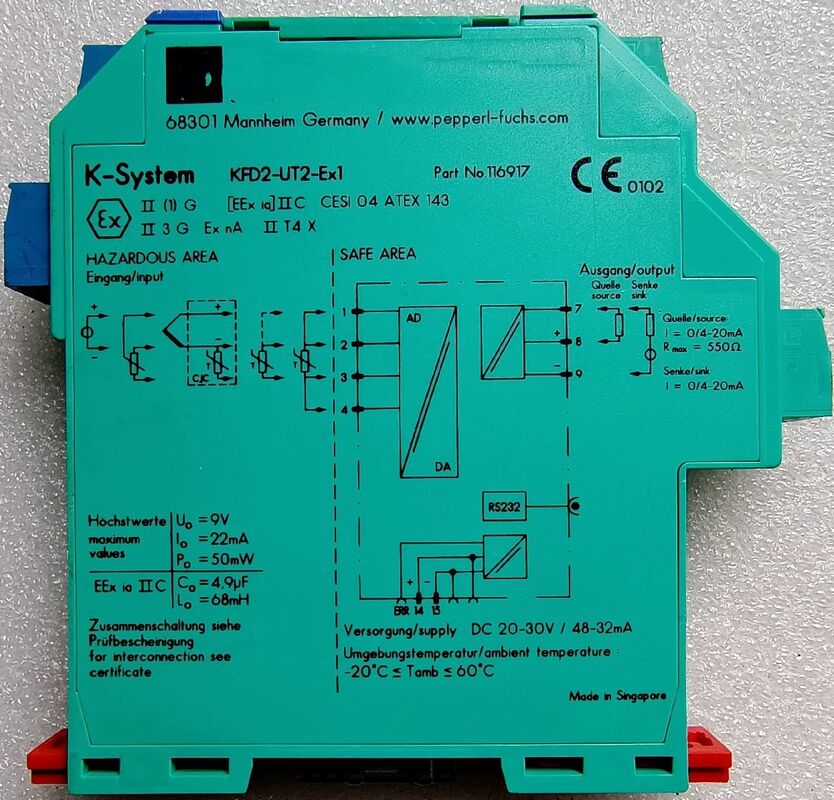

P+F KFD2-UT2-EX1 Universal Temperature Converter 100% New and Original

Universal Temperature Converter
KFD2-UT2-EX1

* 1-channel isolated barrier
* 24 V DC supply (Power Rail)
* Thermocouple, RTD, potentiometer or voltage input
* Current output 0/4 mA ... 20 mA
* Sink or source mode
* Configurable by PACTware
* Line fault (LFD) and sensor burnout detection
* Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
P+F KFD2-UT2-EX1 Universal Temperature Converter 100% New and Original
P+F KFD2-UT2-EX1 Universal Temperature Converter 100% New and Original
P+F KFD2-UT2-EX1 Universal Temperature Converter 100% New and Original
P+F KFD2-UT2-EX1 Universal Temperature Converter 100% New and Original
Specification
General specifications
Signal type
Analog Input
Digital Input
Functional safety related parameters
Safety Integrity Level (SIL)
SIL 2
 SIL 2
Supply
Connection
terminals 14+, 15- or power feed module/Power Rail
Rated voltage
Ur
20 ... 30 V DC
Ripple
within the supply tolerance
Power dissipation
≤ 0.98 W
Power consumption
max. 0.98 W
Interface
Programming interface
 programming socket
Input
Connection side
field side
Connection
terminals 1, 2, 3, 4
RTD
type Pt10, Pt50, Pt100, Pt500, Pt1000 (EN 60751: 1995)
type Pt10GOST, Pt50GOST, Pt100GOST, Pt500GOST, Pt1000GOST (6651-94) typeCu10, Cu50, Cu100 (P50353-92)
type Ni100 (DIN 43760)
Measuring current
approx. 200 µA with RTD
Types of measuring
 2-, 3-,4- wire connection
Lead resistance
max. 50 Ω per line
Measurement loop monitoring
sensor breakage, sensor short-circuit
Thermocouples
type B, E, J, K, N, R, S, T (IEC 584-1: 1995)
type L (DIN 43710: 1985)
type TXK, TXKH, TXA (P8.585-2001)
Cold junction compensation
external and internal
Measurement loop monitoring
sensor breakage
Potentiometer
 0 ... 20 kΩ (2-wire connection), 0.8 ... 20 kΩ (3-wire connection)
Voltage
selectable within the range -100 ... 100 mV
Input resistance
≥ 1 MΩ (-100... 100 mV)
Output
Connection side
control side
Connection
output I: terminal 7: source (-), sink (+), terminal 8: source (+), terminal 9: sink(-)
Output
Analog current output
Current range
0 ... 20 mA or 4 ... 20 mA
Fault signal
downscale 0 or 2 mA, upscale 21.5 mA (acc. NAMUR NE43)
Source
load 0 ... 550 Ω
open-circuit voltage ≤ 18 V
Sink
Voltage across terminals 5 ... 30 V. If the current is supplied from a source > 16.5 V, series resistance of ≥ (V - 16.5)/0.0215 Ω is needed, where V is the source voltage.
The maximum value of the resistance is (V - 5)/0.0215 Ω.
