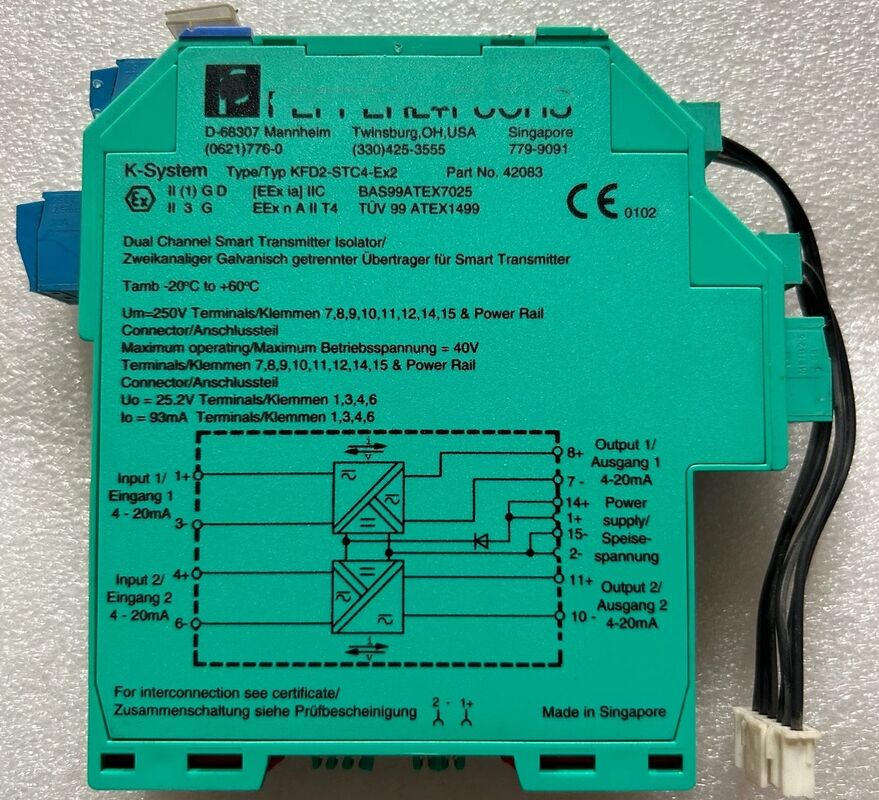

KFD2-STC4-Ex2 SMART Transmitter Power Supply | 2-Channel Isolated Barrier SIL3 New Original
| Brand Name: | P+F |
| Model Number: | KFD2-STC4-Ex2 |
| MOQ: | 1 piece |
| Price: | $85-90 / piece |
| Delivery Time: | 1-3 week days |
| Payment Terms: | T/T |
- 2-channel isolated barrier
- 24 V DC supply (Power Rail)
- Input 2-wire SMART transmitters
- Output 0/4 mA ... 20 mA
- Terminals with test points
- Up to SIL 2 acc. to IEC/EN 61508
| General specifications | ||||
| Signal type | Analog input | Digital Input | ||
| Functional safety related parameters | ||||
| Safety Integrity Level (SIL) | SIL 2 | SIL 2 | ||
| Supply | ||||
| Connection | Power Rail or terminals 14+, 15- | |||
| Rated voltage | Ur | 20 ... 35 V DC | ||
| Ripple | within the supply tolerance | |||
| Power dissipation | 1.8 W | |||
| Power consumption | max. 2.7 W | |||
| Input | ||||
| Connection side | field side | |||
| Connection | terminals 1+, 3-; 4+, 6- | |||
| Input signal | 0/4 ... 20 mA | |||
| Available voltage | ≥ 16 V at 20 mA, terminals 1+, 3 | |||
| Output | ||||
| Connection side | control side | |||
| Connection | terminals 7-, 8+; 10-, 11+ | |||
| Load | 0 ... 550 Ω at 20 mA | |||
| Output signal | 0/4 ... 20 mA (overload > 25 mA) | |||
| Ripple | max. 50 µA rms | |||
| Transfer characteristics | ||||
| Deviation |
at 20 °C (68 °F), 0/4 ... 20 mA
≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage
|
|||
| Influence of ambient temperature | 0.25 µA/K | |||
| Frequency range | field side into the control side: bandwidth with 1 Vpp signal 0 ... 7.5 kHz (-3 dB)
safe area to hazardous area: band width with 1 VSS signal 0.3 ... 7.5 kHz (-3 dB)
|
|||
| Settling time | 200 µs | |||
| Rise time/fall time | 20 µs | |||
