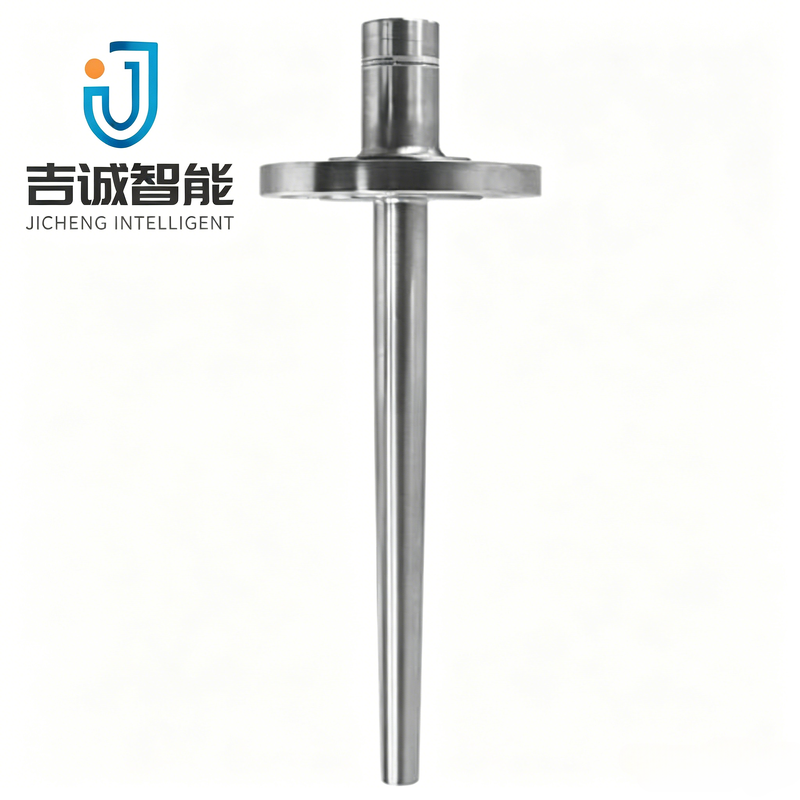

TA555 Omnigrad Barstock Flanged Thermowell 316 Stainless Steel High Pressure Protection Tube New in Stock Competitive Price
| Brand Name: | E+H |
| Model Number: | TA555 |
| MOQ: | 1 piece |
| Price: | $3,900-4,950 / piece |
| Delivery Time: | 1 - 3 days |
| Payment Terms: | T/T |
High Temperature Resistance: Operates from -200°C to 650°C for extreme conditions.
Ultra High Pressure: Resists up to 400 bar static pressure at 20°C for robust performance.
Flanged Connection: ANSI/DIN standard for secure heavy-duty installations.
Tapered Tip Design: Ensures rapid temperature response in applications.
Stainless Steel Construction: Durable and corrosion-resistant materia
-
Measuring principle
Bar stock Thermowell
-
Characteristic / Application
metric style
various process connections
round extension -
Head connection
internal thread:
1/2" NPT -
Maximum standard immersion length
900 mm (35,43")
-
Max. immersion length on request
5.000 mm (196,85")
-
Process connection
thread:
1/2" NPT
1" NPT
flange:
ASME 1" 150 RF (B16.5)
ASME 1" 300 RF (B16.5)
ASME 1" 600 RF (B16.5)
ASME 1 1/2" 150 RF (B16.5)
ASME 1 1/2" 300 RF (B16.5)
ASME 1 1/2" 300 RTJ (B16.5)
ASME 1 1/2" 600 RF (B16.5)
ASME 1 1/2" 600 RTJ (B16.5)
ASME 2" 150 RF (B16.5)
ASME 2" 300 RF (B16.5)
ASME 2" 600 RF (B16.5)
ASME 2" 300 RTJ (B16.5)
ASME 2" 600 RTJ (B16.5) -
Thermowell root diameter
24 mm (0,94")
-
Medium contact material
1.4401 (316)
1.4404 (316L)
1.4571 (316Ti)
2.4819 (Alloy C276)
2.4360 (Alloy 400) -
Wetted part finishing (Ra)
< 0.8 μm (31.50 μin)
< 1.6 μm (63.00 μin) -
Tip shape
straight
conical -
Temperature range
-200...700 °C (-328...1.292 °F)
-
Max. process pressure (static)
500 bar (7252 psi)
-
Max. process pressure at 400 °C
300 bar (4351 psi)
