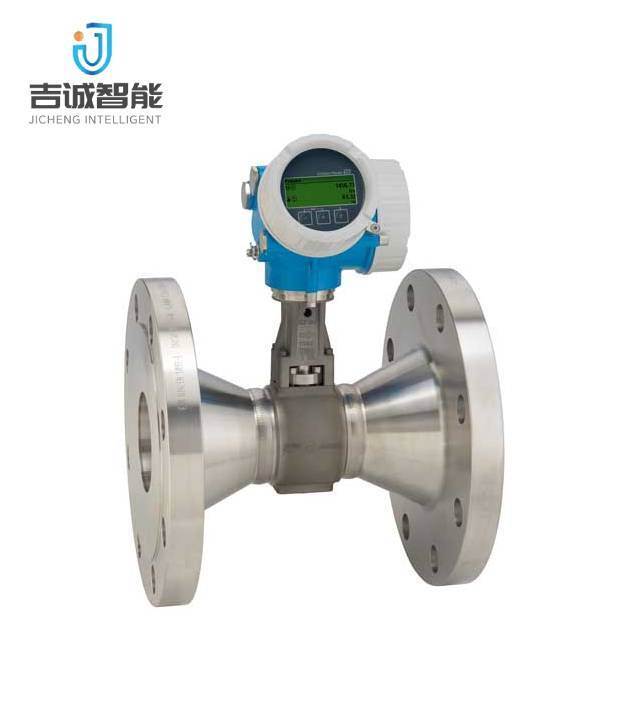

7R2CRK - BCBCBABAADAD2SKA1 + AADEEB Prowirl R200 Vortex Flowmeter HART WLAN Liquid Measurement New Original 1 Year Warranty In Stock
| Brand Name: | E+H |
| Model Number: | 7R2CRK-BCBCBABAADAD2SKA1+AADEEB |
| MOQ: | 1 piece |
| Price: | $1,950-2,350 / piece |
| Delivery Time: | 1 - 3 days |
| Payment Terms: | T/T |
All products are 100 percent brand new original Endress Hauser 7R2CRK Promag R300 electromagnetic flowmeter matched with full AADEEB installation kit sufficient spot stock and one year official quality warranty
Optional PFA hard rubber corrosion resistant inner liner stable measuring performance for sewage acid alkali solvent and various corrosive industrial liquid medium
Compact integrated Promag R300 sensor transmitter all in one flange design simplify on site pipeline installation save cabinet space and commissioning time
High measuring accuracy plus or minus 0.5 percent of reading support bidirectional flow detection nearly zero pipeline pressure loss energy saving operation
Built in HART communication and WLAN wireless touch screen convenient remote parameter setting and real time equipment fault diagnosis
Exclusive Heartbeat intelligent self verification technology automatic instrument inspection without shutting down production lines reduce regular calibration maintenance cost
Wide temperature and pressure adapt range stable long term continuous operation under high temperature high pressure corrosive harsh workshop conditions
Widely applied in chemical petroleum water treatment pharmaceutical corrosive liquid pipeline with CE SIL explosion proof international industrial safety certifications
Easy energy management – integrated temperature and pressure measurement for steam and gases.
Dedicated to applications with very low flow or reduced flow.
Integrated diameter reduction by 1 or 2 line sizes. Nominal diameter (mating pipe) up to DN 250 (10"). Flexible positioning of pressure cell.
DSC sensor: 1.4404/F316/F316L
Process connection: 1.4404/F316/F316L
Volume flow (steam, gas): ±1.00 %
Mass flow (saturated steam): ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)
Mass flow (superheated steam, gas): ±1.5 (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)
Mass flow (liquid): ±0.85%
depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, gas: 1.5 to 7260 m³/h (0.9 to 4270 ft³/min)
depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)
High/low temperature (option): –200 to +400 °C (–328 to +752 °F)
High/low temperature (on request): –200 to +450 °C (–328 to +842 °F)
Compact version (option): –50 to +80 °C (–58 to +176 °F)
Remote version (standard): –40 to +85 °C (–40 to +185 °F)
Remote version (option): –50 to +85 °C (–58 to +185 °F)
Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP66/67, type 4X enclosure
Configuration via local display and operating tools possible
Remote display available
4‐20 mA (passive)
Pulse/frequency/switch output (passive)
DC 12 to 30 V (4‐20 mA HART, 4‐20 mA)
DC 12 to 35 V (4‐20 mA HART, pulse/frequency/switch output, 4‐20 mA input)
DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch output)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
NACE MR0175/MR0103, PMI (on request); welding test acc. to ISO 15614‐1, similar to ASME IX (on request)
Field of application
Prowirl R was designed for low flows and is thus the particularly dependable solution for energy management. Additionally its calibration option PremiumCal guarantees excellent measuring accuracy for maximum plant availability. With genuine loop-powered technology, Prowirl R 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology enables process safety at all times.
-
Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)
-
Dedicated to applications with very low or reduced flow
Device properties
-
Integrated diameter reduction by 1 or 2 line sizes
-
Nominal diameter (mating pipe) up to DN 250 (10")
-
Flexible positioning of pressure cell
-
Display module with data transfer function
-
Robust dual-compartment housing
-
Plant safety: worldwide approvals (SIL, Haz. area)
-
Benefits
-
Easy energy management – integrated temperature and pressure measurement for steam and gases
-
Cost and time savings – no pipework modifications needed for line size reduction
-
Same accuracy down to Re 10 000 – most linear Vortex meter body
-
Long-term stability – robust drift-free capacitive sensor
-
Convenient device wiring – separate connection compartment, various output options including Ethernet
-
Safe operation – no need to open the device
-
Integrated verification – Heartbeat Technology
-
