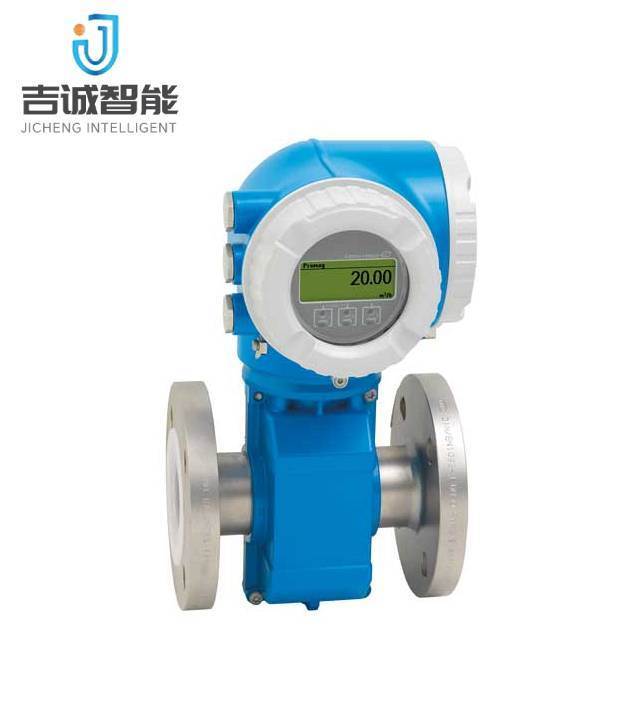

5P3B1H - AAIBAEAFAAED3S0BA2 + AA Promag P300 DN25 Electromagnetic Flowmeter New Original 1 Year Warranty In Stock

Product descriptions from the supplier

All products are 100 percent brand new original Endress Hauser 5P3B1H Promag P300 electromagnetic flowmeter matched with full AA installation kit sufficient spot stock and one year official quality warranty

Adopt premium PFA corrosion resistant inner liner stable measuring performance for strong acid alkali solvent and high temperature corrosive chemical medium

Compact integrated Promag P300 sensor transmitter all in one flange design simplify on site pipeline installation save commissioning time and layout space

Standard measuring accuracy plus or minus 0.5 percent of reading support bidirectional flow detection nearly zero pipeline pressure loss

Built in HART communication and WLAN wireless touch screen convenient remote parameter setting and real time equipment fault diagnosis

Exclusive Heartbeat intelligent self verification technology automatic instrument inspection without shutting down production lines reduce regular maintenance cost

Wide temperature pressure adapt range PFA liner support medium temperature up to 150°C PN40 high pressure stable long term continuous operation

Widely applied in chemical pharmaceutical fine chemical corrosive liquid pipeline with CE SIL international industrial safety certifications

• Measuring principle
  Electromagnetic
• Product headline
  High-temperature flowmeter for process applications with a compact, easily accessible transmitter.
  Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.
• Sensor features
  Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
  Nominal diameter: max. DN 600 (24"). All common Ex approvals.
• Transmitter features
  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
  Liner made of PTFE or PFA. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
• Nominal diameter range
  DN 15 to 600 (½ to 24")
• Wetted materials
  Liner: PFA; PTFE
  Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
• Max. measurement error
  Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
  Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec
• Measuring range
  4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
• Max. process pressure
  PN 40, Class 300, 20K
• Medium temperature range
  Liner material PFA: –20 to +150 °C (–4 to +302 °F)
  Liner material PFA high-temperature: –20 to +180 °C (–4 to +356 °F)
  Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
• Ambient temperature range
  Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
  Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
• Sensor housing material
  DN 15 to 300 (½ to 12""): AlSi10Mg, coated
  DN 350 to 600 (14 to 24""): Carbon steel with protective varnish
• Transmitter housing material
  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
• Degree of protection
  Standard: IP66/67, Type 4X enclosure
• Display/Operation
  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available
• Outputs
  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA WirelessHART
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output
• Inputs
  Status input
  4-20 mA input
• Digital communication
  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
• Power supply
  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)
• Hazardous area approvals
  ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
• Product safety
  CE, C-tick, EAC marking
• Functional safety
  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
• Metrological approvals and certificates
  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
• Marine approvals and certificates
  LR approval, DNV approval, ABS approval, BV approval
• Pressure approvals and certificates
  PED, CRN
• Material certificates
  3.1 material
• Hygienic approvals and certificates
  ACS, NSF 61, WRAS
